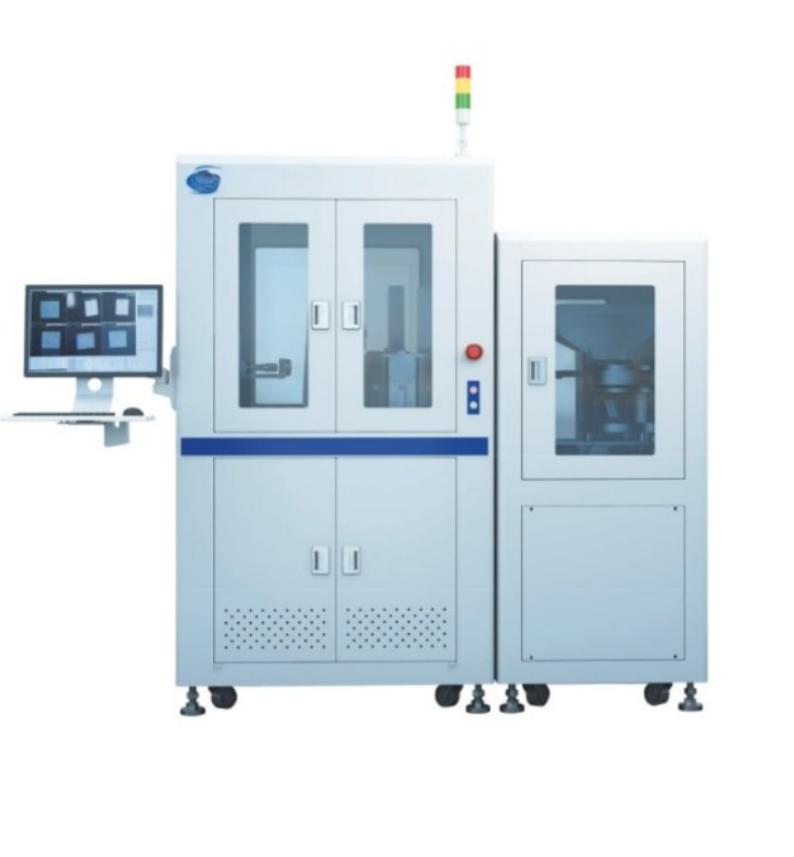

Fully-Automated SAT for Power Module with Encapsulation Process

The Fully-Automated SAT for Power Module with Encapsulation Process is equipped with front and rear dual probes for simultaneous scanning of modules in two waterproof fixtures, with automatic defect identification, data upload, product classification, and manual review buffering.

DESCRIPTION

Production Integration: Can be docked with customer’s production line or AGV.
Dual-Probe Scanning: Front and rear dual probes scan modules at two waterproof fixtures simultaneously.
Waterproof Fixture Testing: Tests the sealing of waterproof fixtures to ensure that products do not come into contact with water during production.
Fixture Change: Waterproof fixtures can be quickly switched when testing other module sizes.
Loading & Unloading: Two sets of carriers support loading and unloading while scanning.
Automatic Binding: Automatically binds/unbinds the carrier and product information.
Bubble Removal: Automatically removes bubbles caused by drying when the product is placed in water.
AI Defect Identification: AI software automatically identifies defects and calculates defect size and proportion.
Data Management: Automatically saves data and uploads it to the MES system.
Air Drying: Equipped with an air drying system to dry the test sample.
Product Classification: Automatically differentiates and categorizes qualified or unqualified products.
Manual Review: Buffers materials that need manual review.
